Recently I implemented the forward+ tile culling for point light.

It seems there is a problem when storing variable with the index return by InterlockedAdd().

Here is the code section:

for (uint lightIndex = _threadIdx; lightIndex < _NumPointLight; lightIndex += TILE_SIZE * TILE_SIZE)
{
   ... calc tile plane, not important for this question so I skip them here ...

   bool overlapping = SphereInsideFrustum(float4(lightPos, light.range), plane);
   if (overlapping)
   {
       uint idx = 0;
       InterlockedAdd(tilePointLightCount, 1, idx);
       tilePointLightArray[idx] = lightIndex;
   }
}
GroupMemoryBarrierWithGroupSync();

if (_threadIdx == 0)
{
    // store opaque
    _TileResult.Store(tileOffset, tilePointLightCount);
    uint offset = tileOffset + 4;
    for (uint i = 0; i < tilePointLightCount; i++)
    {
        _TileResult.Store(offset, tilePointLightArray[i]);
        offset += 4;
    }
}

tilePointLightCount & tilePointLightArray are group shared variable.

And _threadIdx comes from SV_GroupIndex, each thread will cull 1 light.

Most samples use index return from InterlockedAdd when storing group shared variable.

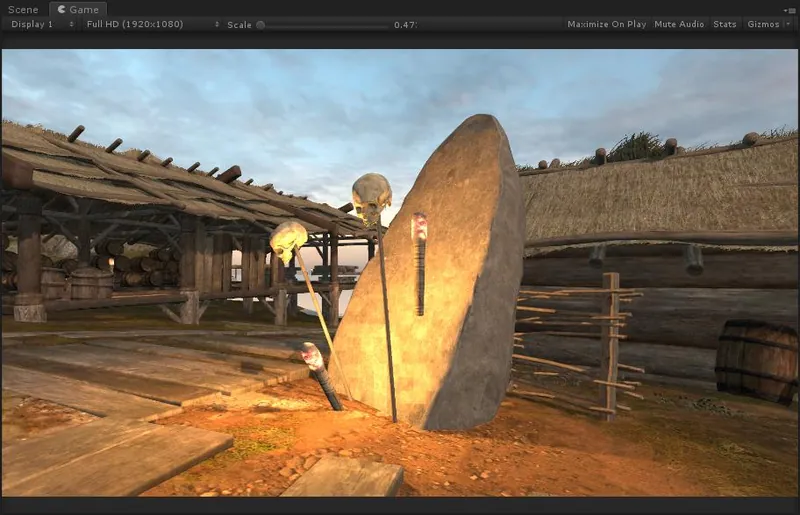

However I got unexpected glitch tiles:

I've checked my algorithm and I'm sure the calculation is correct (including frustum, sphere-plane intersection).

Even I change overlapping to true and force shader to store every light index in array, the glitch still exists.

So I tried another code:

if (overlapping)
{
    uint idx = 0;
    InterlockedAdd(tilePointLightCount, 1, idx);
    tilePointLightArray[lightIndex] = true;
}

if (_threadIdx == 0)
{
    // store opaque
    _TileResult.Store(tileOffset, tilePointLightCount);
    uint offset = tileOffset + 4;
    for (uint i = 0; i < _NumPointLight; i++)
    {
        if (tilePointLightArray[i])
        {
            _TileResult.Store(offset, i);
            offset += 4;
        }
    }
}

This time, I mark the light that is overlapped with tile and store the light index later with for loop.

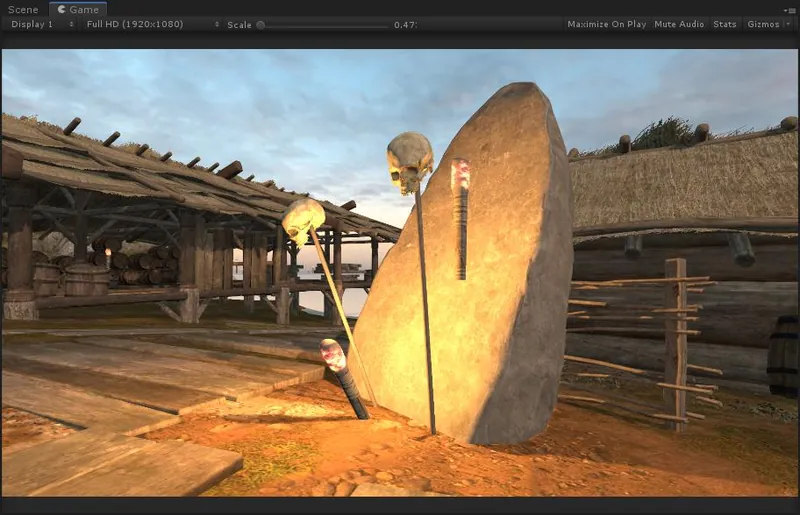

Now the glitch is gone!

Both code section give me a boost on forward lighting calculation from 11ms to 0.48ms with 417 point lights.

However I need to use 2nd code section to get stable output.

Is there any problem in my 1st code?It should works like a charm.

Or is it a driver issue?My card is RTX 2070 with driver version 452.06.

I've heard other cases about InterlockedAdd() with nvidia card. For example:

https://forums.developer.nvidia.com/t/interlockedadd-limitations-since-v-334-67beta-v-334-89/32522

https://www.gamedev.net/forums/topic/694086-compute-shaders-synchronization-issue/

https://stackoverflow.com/questions/54794206/calling-interlockedadd-on-rwbyteaddressbuffer-multiple-times-gives-unexpected-re

I've tried to figure out this problem few days. Any suggestions would be great.

I really want to use 1st code, culling time is slower with 2nd code. (0.21ms -> 1.0ms if I use 2nd code.)

Thanks!

// result
RWByteAddressBuffer _TileResult : register(u0);
RWByteAddressBuffer _TransTileResult : register(u1);

groupshared uint minDepthU;
groupshared uint maxDepthU;
groupshared uint tilePointLightCount;
groupshared uint transTilePointLightCount;
groupshared uint tilePointLightArray[1024];
groupshared uint transTilePointLightArray[1024];

[RootSignature(ForwardPlusTileRS)]
[numthreads(TILE_SIZE, TILE_SIZE, 1)]
void ForwardPlusTileCS(uint3 _globalID : SV_DispatchThreadID, uint3 _groupID : SV_GroupID, uint _threadIdx : SV_GroupIndex)
{
	float depth = -1;

	if (_globalID.x >= _ScreenSize.x || _globalID.y >= _ScreenSize.y)
	{
		// out of range
		// do nothing here, we need to check depth within a tile
	}
	else
	{
		// fetch depth
		depth = _TexTable[_DepthIndex][_globalID.xy].r;
	}

	// init thread variable and sync
	if (_threadIdx == 0)
	{
		minDepthU = UINT_MAX;
		maxDepthU = 0;
		tilePointLightCount = 0;
		transTilePointLightCount = 0;
	}
	GroupMemoryBarrierWithGroupSync();

	// find min/max depth
	if (depth != -1.0)
	{
		uint depthU = asuint(depth);

		InterlockedMin(minDepthU, depthU);
		InterlockedMax(maxDepthU, depthU);
	}
	GroupMemoryBarrierWithGroupSync();

	// tile data
	uint tileIndex = _groupID.x + _groupID.y * _TileCountX;
	uint tileOffset = GetPointLightOffset(tileIndex);

	// calc frustum plane
	float minDepthF = asfloat(minDepthU);
	float maxDepthF = asfloat(maxDepthU);
	maxDepthF = lerp(maxDepthF, minDepthF + FLOAT_EPSILON, (maxDepthF - minDepthF) < FLOAT_EPSILON);

	float4 plane[6];
	CalcFrustumPlanes(_groupID.x, _groupID.y, maxDepthF, minDepthF, plane);

	for (uint lightIndex = _threadIdx; lightIndex < _NumPointLight; lightIndex += TILE_SIZE * TILE_SIZE)
	{
		// light overlap test
		SqLight light = _SqPointLight[lightIndex];
		float3 lightPosV = mul(SQ_MATRIX_V, float4(light.world.xyz, 1.0f)).xyz * float3(1, 1, -1);

		// test opaque
		bool overlapping = SphereInsideFrustum(float4(lightPosV, light.range), plane);
		if (overlapping)
		{
			uint idx = 0;
			InterlockedAdd(tilePointLightCount, 1, idx);
			tilePointLightArray[idx] = lightIndex;
		}

		// test transparent
		plane[4].w = 0.0f;
		overlapping = SphereInsideFrustum(float4(lightPosV, light.range), plane);
		if (overlapping)
		{
			uint idx = 0;
			InterlockedAdd(transTilePointLightCount, 1, idx);
			transTilePointLightArray[idx] = lightIndex;
		}
	}
	GroupMemoryBarrierWithGroupSync();

	// output by one thread
	if (_threadIdx == _NumPointLight)
	{
		// store opaque
		_TileResult.Store(tileOffset, tilePointLightCount);
		uint offset = tileOffset + 4;
		for (uint i = 0; i < tilePointLightCount; i++)
		{
			//if (tilePointLightArray[i])
			{
				_TileResult.Store(offset, tilePointLightArray[i]);
				offset += 4;
			}
		}

		// store transparent
		_TransTileResult.Store(tileOffset, transTilePointLightCount);
		offset = tileOffset + 4;
		for (i = 0; i < transTilePointLightCount; i++)
		{
			//if (transTilePointLightArray[i])
			{
				_TransTileResult.Store(offset, transTilePointLightArray[i]);
				offset += 4;
			}
		}
	}
}

Here is full code (1st method) except some custom function(Since they'are not the problem).

1. Yes the light count is initialized to 0, since it is a group shared variable I only init it on one thread.
2. I use _NumPointLight in for loop condition and I'm sure this number is correct, overflowing should not happen.

I wonder if I still miss some steps so that the result is unexpected?

Pull out frustum planes from loop and distribute final writes are both useful suggestions.

Thanks MJP!

After a further testing of my code.

I realize the bug is somewhere else lol.

The tile culling is fine.

The problem is how I use the result later, my algorithm doesn't work well if the light index is not consistent through tiles.

For example, Tile 0 & Tile 1 both are covered by Light0~Light5. Where both Tiles stored:

Tile 0: 0,1,2,3,4

Tile 1: 0,2,3,4,1

^^^ This causes the glitch. I will modify my methods.

InterlockedAdd() works well.

My bad!
