My new variance shadow map code has a problem and it generates nothing

Started by alphateam Apr 6, 2020 at 5:57 PM 0 replies 1.7k views
Original Post
alphateam
alphateam

Hi!

I'm pretty new to this forum. I'm recently working on my editor with a directional light, the shadow tech I applied was vsm but it didn't work well under large filter radius, thus I started over and now I got no shadow upon my new vsm method.

Here is the code:

 float ActualDistance = Input.depth;
    float2 Moment=GetDataFromZmap2(projUV);  //projUV is the texcoord transformed from the light's view matrix.
    float M1sq=Moment.x*Moment.x;  //spuared moment.x
    float dis=(ActualDistance-Moment.x);
            if(ActualDistance <= Moment.x)//-------------unshadowed
                    {
                    return 1;
                    }
                    float variance = Moment.y-M1sq;
                    variance=variance/(variance+dis*dis);
                    return variance;   //this should be the shadow factor that values from 0 to 1.

Moment.x is the value of depth and Moment.y is the one of squared depth, they are all from a blurred/filtered 2-channel depthmap, rendered at the light's view/camera.

I tested the following code to testify the value of Moment.x(blurred depthmap) and ActualDistance(from the player camera's view but the value itself is the z-value from the light's camera/view), they are generated from the same method(vertex shader, current value transformed by matWorldViewProjection, then z divided by w).

Output.depth= Output.Position.z / Output.Position.w;

The only difference is: depthmap value is from the light's viewMat and ActualDistance is from the light's viewMat but via the player's view.

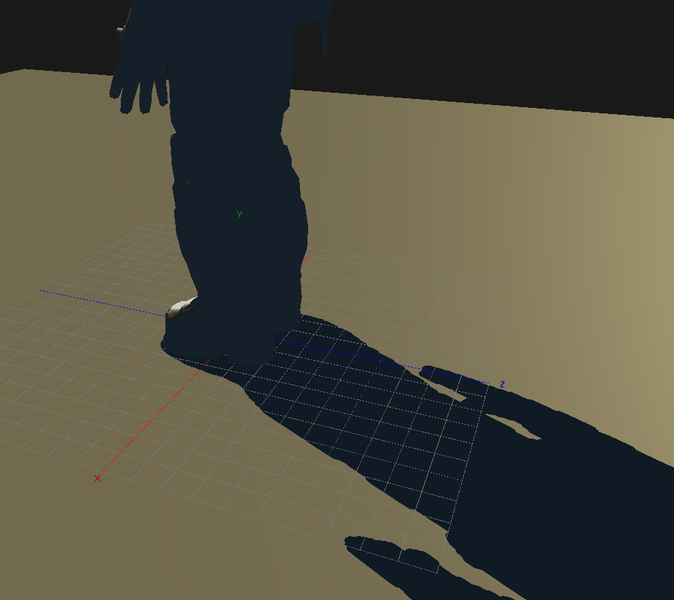

The following code gives a correct result(see the pic), which can prove that both Moment.x(as well as the unfiltered depthmap) and actualldistance are correct so far.

        float ActualDistance = Input.depth;
        float2 Moment=GetDataFromZmap2(projUV);  //projUV is the texcoord transformed from the light's view matrix.
        float M1sq=Moment.x*Moment.x;  //spuared moment.x
        float dis=(ActualDistance-Moment.x);
                if(ActualDistance <= Moment.x)//-------------unshadowed
                        {
                        return 1;
                        }
                 return 0;
The result of comparing Moment.x and ActualDistance

My question is, what is the problem with my vsm code? Please let me know when more detail is needed, thanks for the help.
